Network Architecture

Dual-Subnet Design

The lab uses two separate networks to simulate a realistic enterprise environment with network segmentation.

Network Map

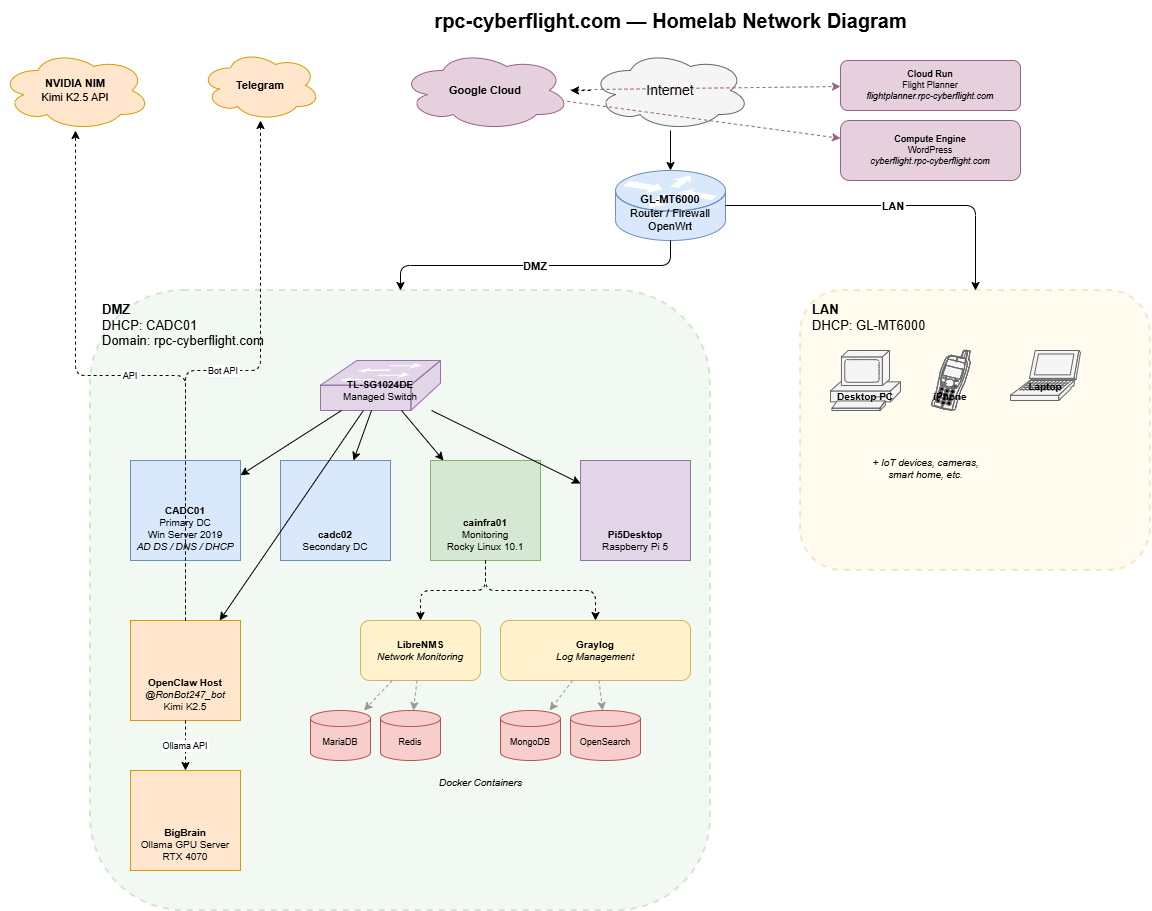

Lab Network Architecture Diagram
Homelab Network Architecture

Subnets

Network Subnet Purpose Gateway DHCP
LAN 192.168.x.x/24 Home devices — PCs, phones, IoT GL-MT6000 (192.168.x.x) Router (100–250, 12h lease)
DMZ 192.168.x.x/24 Lab servers and infrastructure GL-MT6000 (192.168.x.x) CADC01 (100–200, 8h lease)

Why Two Networks?

Separating home devices from lab infrastructure mirrors how enterprises segment trusted and untrusted zones. The DMZ hosts all servers and services. The LAN is for daily use. The router bridges them with firewall rules controlling traffic flow.

Router — GL-MT6000

  • OS: OpenWrt (Linux 5.4, aarch64)
  • Interfaces: LAN (192.168.x.x), DMZ (192.168.x.x), WAN
  • DNS Stack: AdGuardHome (port 3053) intercepts all DNS via iptables redirect. Dnsmasq runs on port 53 but is bypassed.
  • Upstream DNS: 8.8.8.8, 9.9.9.9 (via AdGuardHome)
  • Conditional Forward: rpc-cyberflight.com queries route to CADC01 (192.168.x.x) for internal DNS resolution
  • VPN: WireGuard tunnel for remote access

DNS Flow

Client query → iptables REDIRECT → AdGuardHome (:3053)
  ├── rpc-cyberflight.com → CADC01 (192.168.x.x)
  └── everything else → 8.8.8.8 / 9.9.9.9

This is important: if you only configure dnsmasq, your DNS changes won’t take effect because AdGuardHome intercepts first.

DMZ Switch — TP-Link TL-SG1024DE

  • IP: 192.168.x.x
  • Type: 24-port managed gigabit switch
  • Role: Connects all DMZ devices (Proxmox nodes, VMs via bridge)

Key Design Decisions

Decision Rationale
Separate DMZ subnet Isolates lab traffic from home devices; mirrors enterprise segmentation
AD-managed DHCP in DMZ Centralizes IP management; supports DNS dynamic updates
AdGuardHome on router Ad blocking + DNS filtering for all home devices
Conditional DNS forward Lab domains resolve internally without changing client DNS settings
WireGuard VPN Secure remote access to DMZ from anywhere
SNMPv3 for Linux/Proxmox Encrypted monitoring; SNMPv2c only where v3 isn’t supported (Windows, OpenWrt)

DHCP Reservations

All servers and infrastructure devices have static DHCP reservations on CADC01:

Device IP Purpose
cainfra01 192.168.x.x Monitoring/infrastructure server
TL-SG1024DE 192.168.x.x Managed switch
cadc02 192.168.x.x Secondary domain controller
Pi5Desktop 192.168.x.x Raspberry Pi 5

What You Learn Building This

  • Network segmentation — VLANs/subnets, firewall zones, traffic control
  • DNS architecture — authoritative zones, conditional forwarding, split DNS
  • DHCP management — scopes, reservations, exclusions, lease management
  • Router configuration — OpenWrt, iptables, dnsmasq, AdGuardHome
  • VPN setup — WireGuard tunnel configuration
  • SNMP monitoring — v2c vs v3, security tradeoffs, extend scripts
